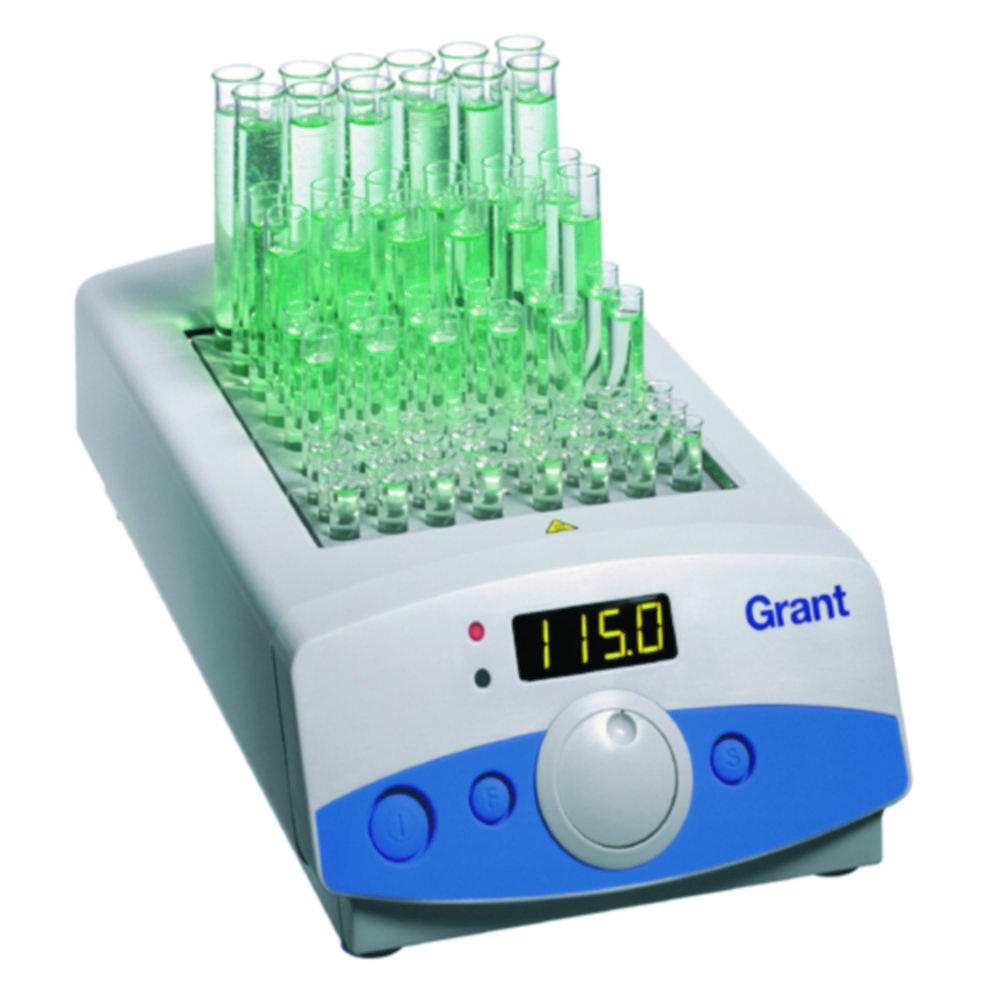

Block thermostats,QBD and QBH series
Product information "Block thermostats,QBD and QBH series"
For controlled dry heating of test tubes, microplates and Eppendorf tubes in interchangeable aluminium blocks. The following models are available:
- Choose from 3 digital systems with 1, 2 or 4 interchangeable blocks (QBD models) and 1 digital high-temperature system (QBH2) with 2 blocks
- Fast heat-up time and in-block temperature sensing capability using external sensor probe. Please order Cat. No. 6.228 714 separately.
- Built-in timer, programmable delayed start and RS232 output for data monitoring
- Includes block removal tool
| Specifications | |
| Temperature range: | ambient 5 to 130 °C, QBH2: ambient 5 to 200 °C |
| Stability at 37 °C: Uniformity | ±0.1 °C |
| within the block at 37 °C: across similar blocks at 37 °C: | ±0.1 °C ±0.2 °C |
| Supply requirements: | 230 V, 50/60 Hz, single phase |
| Blocks accepted: | 4 |
|---|---|
| Height mm: | 100 |
| Length mm: | 380 |
| Manufacturer Article Number: | QBD4 |
| Power W: | 600 |
| Type: | QBD4 |
| Width mm: | 200 |
Skip product gallery
Other customers also bought
Block Heaters, analogue and digital, BH-200 series
€0.00*
choice of either analogue or digital modelsdigital models available with either 130 or 200 °C maximum temperaturethree block model for extra capacitydual control models have two blocks with independent temperature controluniform and stable block temperaturesDesigned for the precise heating of test-tubes, microcentrifuge tubes, cuvettes and microplates.Range compromises an economical analogue model with easy to use, dial setting and advanced digital models with bright, easy to read, LED display which facilitates setting of the required temperature and also accurate monitoring of the actual temperature.Excellent temperature stability and uniformity is maintained via sensitive, microprocessor control.Heats to 100°C in
Skip product gallery
Accessories

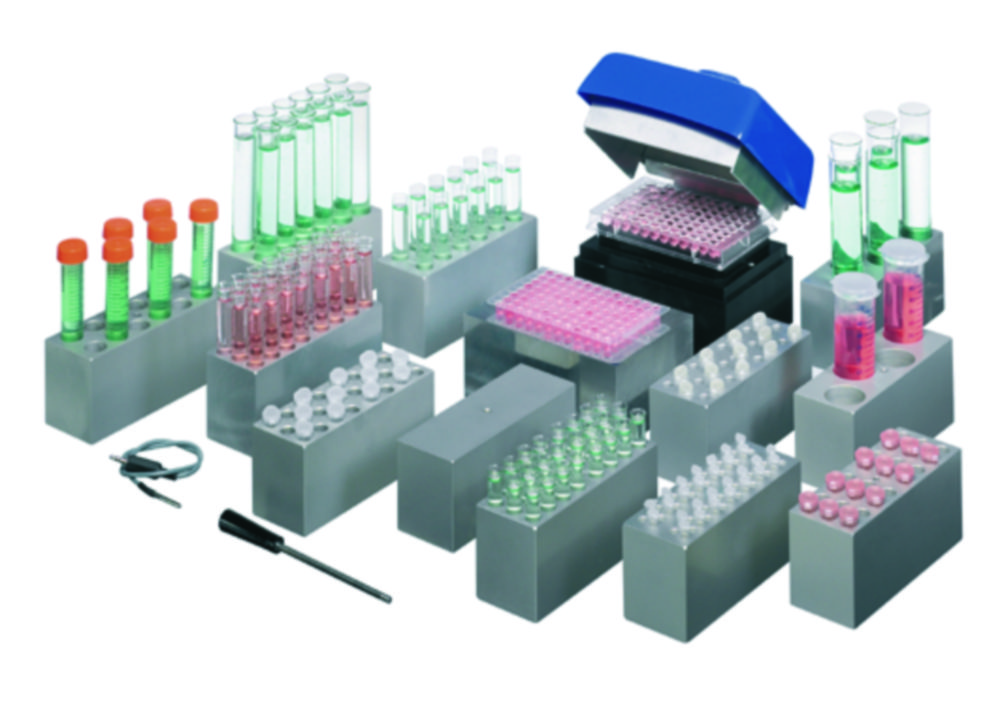

Digital block thermostats QB, for QBD, QBH series
