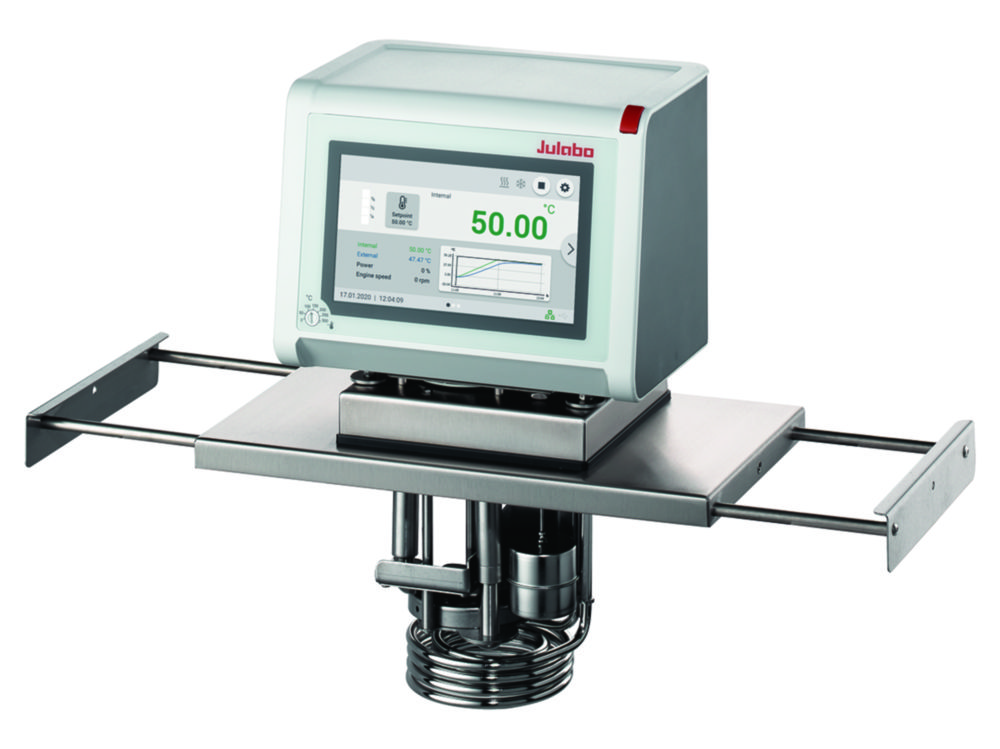

Bridge circulators MAGIO MS and MX
Product information "Bridge circulators MAGIO MS and MX"
Thanks to the adjustable stainless steel bridge the thermostats can be used with bath tanks up to a filling volume of 100 litres and bath widths from 33 to 68 cm.
- Simple control of complex applications
- Infinitely adjustable, extremely powerful pressure and suction pump
- Large, high-resolution TFT touch display with multilingual user interface
- Medium-contacting parts made of stainless steel
- Integrated programmer
- External Pt100 connection
- USB interface
- RS232 interface
- Ethernet interface
- Analogue interfaces (optionally)
- Classification III according to DIN 12876-1
| Depth: | 190 mm |
|---|---|
| Dimensions (WxDxH): | 340 x 190 x 360 mm |
| Heating capacity: | 2 kW |
| Height: | 360 mm |
| IP code: | IP 20 |
| Immersion depth: | 150 mm |
| Manufacturer Article Number: | 9032201 |
| Max. delivery pressure: | 0.92 bar |
| Max. flow rate: | 31 l/min |
| Max. immersion depth: | 150 mm |
| Max. suction pressure: | 0.4 bar |
| Max. temperature: | 300 °C |
| Max. voltage: | 230 V |
| Min. temperature: | 20 °C |
| Operation: | Touchscreen |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Programmable: | Yes |
| Temperature: | 20 ... 300 °C |
| Temperature stability: | ±0,01 °C |
| Type: | MS-Z |
| Type of auxiliary energy: | Mains connection |
| Type of display: | TFT |
| Weight: | 7.2 kg |
| Width: | 340 mm |
| With timer: | Yes |
Skip product gallery
Accessories

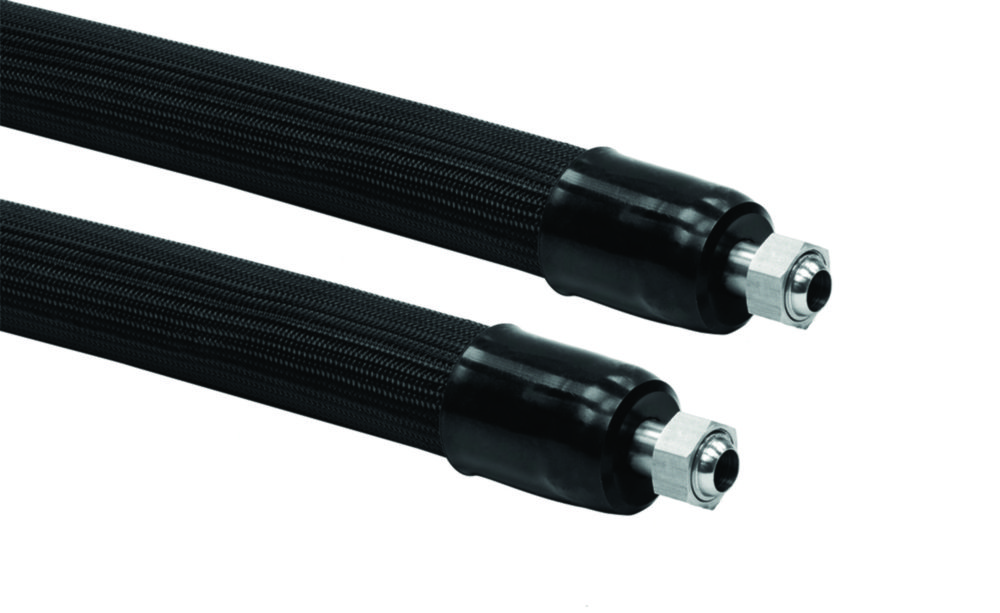

Temperature hoses, stainless steel 1.4404, triple insulation
€0.00*
Temperature hoses with special triple insulation and two M16 x 1 connections. The ends are covered with silicone caps for protection. Max. pressure 6 bar (at 20 °C), 4 bar (at 350 °C).
ProfiNet Interface
€0.00*
The ProfiNet interface is a protocol converter from ProfiNet to RS232. Application interfaces RS232, 422, and 485. Bus interface ProfiNet 2Port. Mounting on DIN top-hat rail.

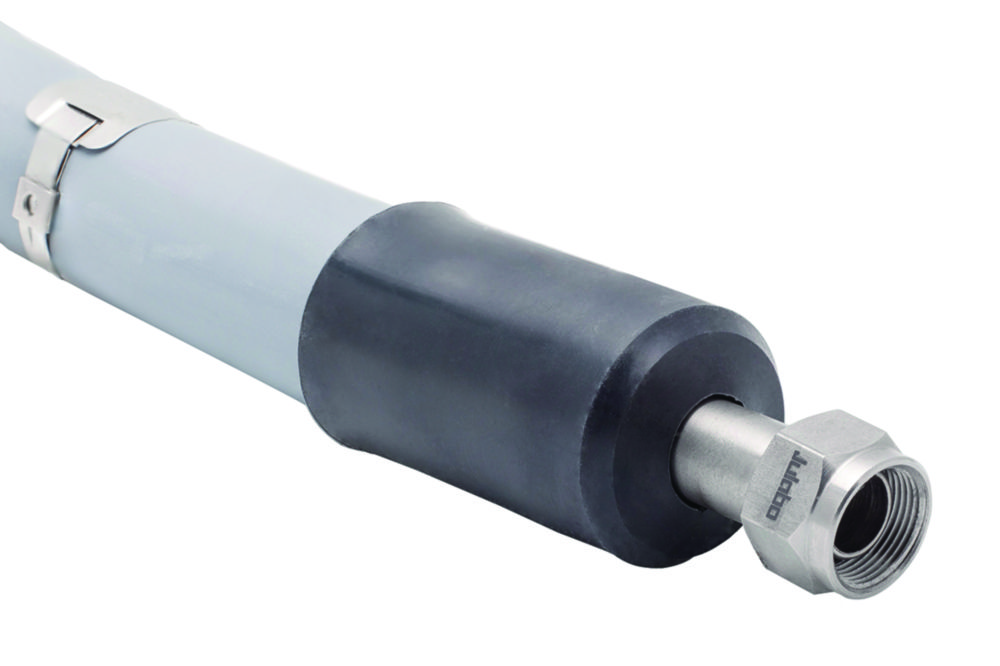

Temperature hoses, stainless steel 1.4404, single insulation
€0.00*
Temperature hoses with special single insulation and two M16 x 1 connections. The ends are covered with silicone caps for protection. Max. pressure 6 bar (at 20 °C), 4.6 bar (at 200 °C).
Skip product gallery
Other customers also bought

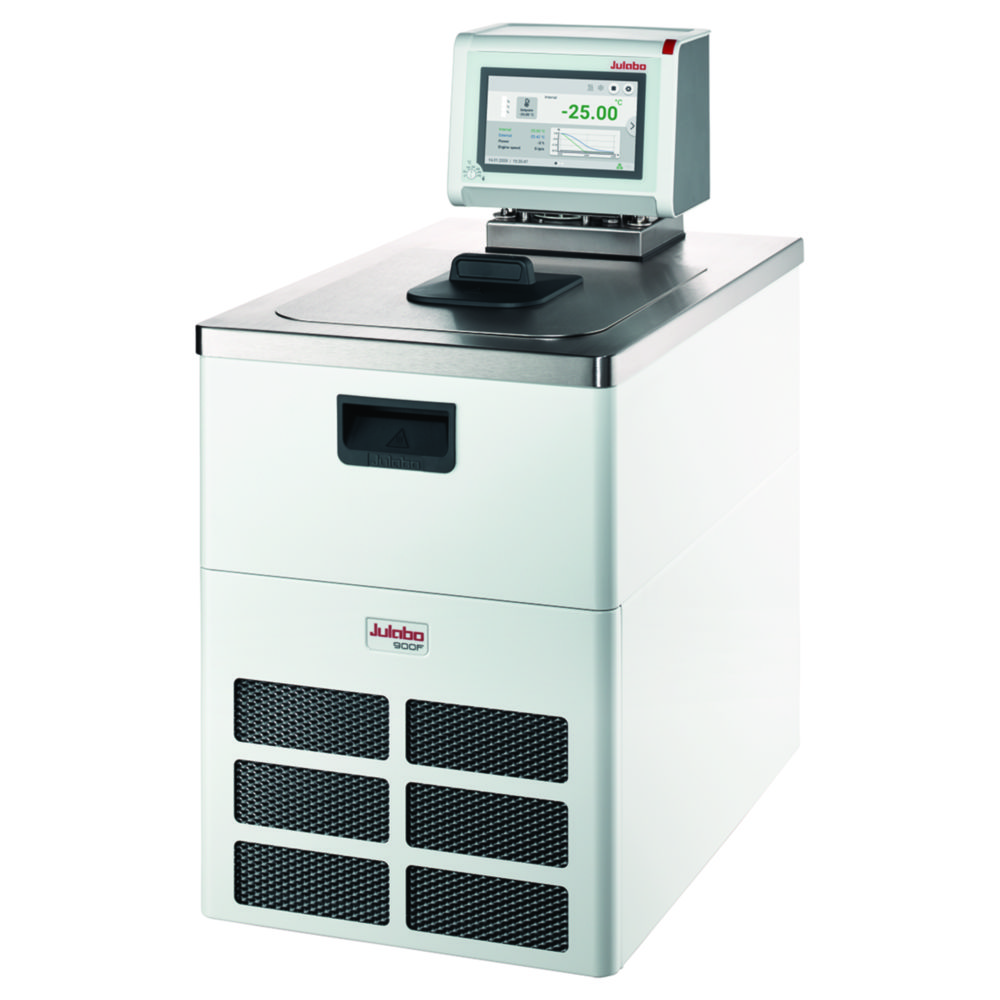

Refrigerated circulators MAGIO™ MS/MX
