Digital microscope set OZL, with tablet camera
Product information "Digital microscope set OZL, with tablet camera"
The set is the digital solution, with zoom function, for schools, training companies, inspection authorities and laboratories.
Scope of supply:
Stereo zoom microscope, camera, dust cover, eye cups, manual instruction
- Optical system: Greenough optics
- Diopter adjustment both-sided
- Stand (464, 466): pillar
- Stand (468): mechanic
- Illumination: 3 W-LED incident, 3 W-LED transmitted
Scope of supply:
Stereo zoom microscope, camera, dust cover, eye cups, manual instruction
| Depth: | 240 mm |
|---|---|
| Dimensions (WxDxH): | 300 x 240 x 420 mm |
| Height: | 420 mm |
| Inclination angle tube: | 45° |
| Interfaces: | WLAN, USB 2.0, HDMI, SD (15 ... 30 FPS) |
| Interpupillary distance: | 55 ... 75 mm |
| Light type: | LED |
| Magnification eyepieces: | HWF 10x/ 20 mm |
| Magnification objectives: | 0,7x ... 4,5x |
| Manufacturer Article Number: | OZL 468T241 |
| Max. interpupillary distance: | 75 mm |
| Max. voltage: | 230 V |
| Min. interpupillary distance: | 55 mm |
| Objective system: | Zoom |
| Plug type: | EU |
| Power supply: | 230 V, 50 Hz |
| Power supply frequency: | 50 Hz |
| Resolution camera: | 5 MP |
| Sensor: | CMOS 1/2,5" |
| Tube: | Trinocular |
| Type: | OZL 468T241 |
| Type of auxiliary energy: | Mains connection |
| Weight: | 5 kg |
| Width: | 300 mm |
Skip product gallery
Other customers also bought
Digital microscope set OZL, with C-mount camera
€0.00*
The set is the digital solution, with zoom function, for schools, training companies, inspection authorities and laboratories.Optical system: Greenough opticsDiopter adjustment both-sidedStand (464, 466): pillarStand (468): mechanicIllumination: 3 W-LED incident, 3 W-LED transmittedScope of supply:Stereo zoom microscope, camera, C-Mount adapter, dust cover, eye cups, manual instruction
Greenough Stereo Microscopes Lab-Line OZL
€0.00*
The flexible all-rounder with zoom function for schools, training companies, inspection authorities and laboratories.Tube 45° inclinedWide Field HWF 10x/20 mmDiopter adjustment: Both-sidedIllumination: 3 W-LED Incident and 3 W-LED transmitted, seperately dimmableInterpupillary distance 55 to 75 mmLarge selection of eyepieces, external illumination units as well as auxiliary objectives are available as accessoriesOZL 466 with strong, continuously dimmable, integrated LED ring illumination in the objective housingOZL 468 with integrated handle and stable, mechanical standProtective dust cover, eye piece rubber caps, as well as multi-lingual user instructions included in the scope of supply
Skip product gallery
Accessories

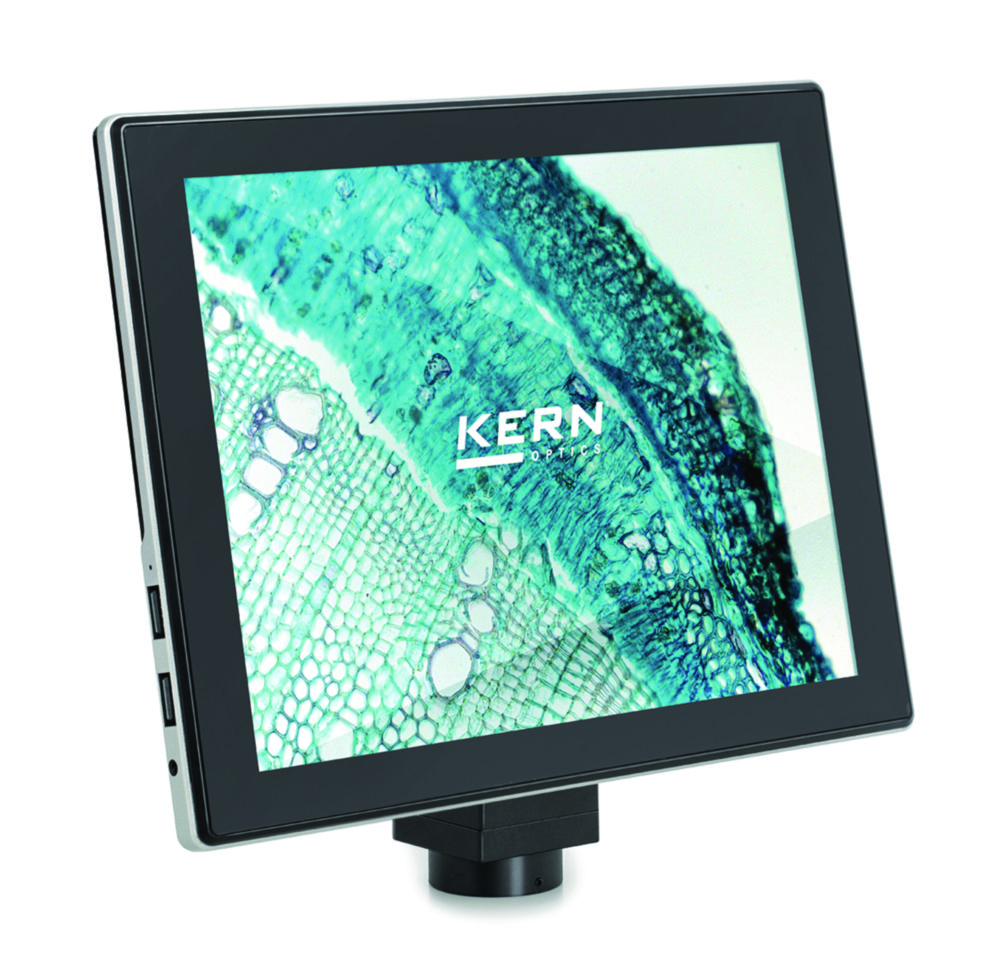

Tablet camera ODC
