Overhead stirrer EUROSTAR 200 digital
Product information "Overhead stirrer EUROSTAR 200 digital"
Extremely powerful laboratory stirrer for highly viscous applications and intensive mixing for quantities up to 100 l (H2O). It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/6 to 2000 rpm (two speed ranges). Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample.
- Digital speed display
- Infinitely adjustable speed
- Push-through agitator shafts
- Overload protection
- Short-term overload operation
- Slim casing
- Quiet operation
- Error code display
| Clamping range: | 0.5 ... 10 mm |
|---|---|
| Depth: | 209 mm |
| Dimensions (WxDxH): | 91 x 209 x 274 mm |
| Display: | Digital |
| Height: | 274 mm |
| IP code: | IP 42 |
| Manufacturer Article Number: | 0003990000 |
| Max. Viscosity: | 100000 mPa·s |
| Max. clamping width: | 10 mm |
| Max. speed: | 2000 1/min |
| Max. stirring capacity: | 100 l |
| Max. torque: | 200 Ncm |
| Max. voltage: | 230 V |
| Min. clamping width: | 0.5 mm |
| Min. speed: | 6 1/min |
| Plug type: | EU |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 130 W |
| Speed: | 6 ... 2,000 1/min |
| Type: | EUROSTAR 200 digital |
| Type of auxiliary energy: | Mains connection |
| Weight: | 4.6 kg |
| Width: | 91 mm |
| With connection ext. temperature sensor: | No |
| With timer: | No |
Skip product gallery
Accessories
H-stand R 2722 for overhead stirrers and Disperser T 50 digital ULTRA-TURRAX®
€0.00*
Stable stands with H-shaped base. Stands have a levelling screw to compensate for unevenness on the laboratory bench. Max. load 10 kg.
Bosshead R 271 for overhead stirrers and Disperser T 50 digital ULTRA-TURRAX®
€0.00*
Claming range stand 34 mmClaming range extension arm 16 mm

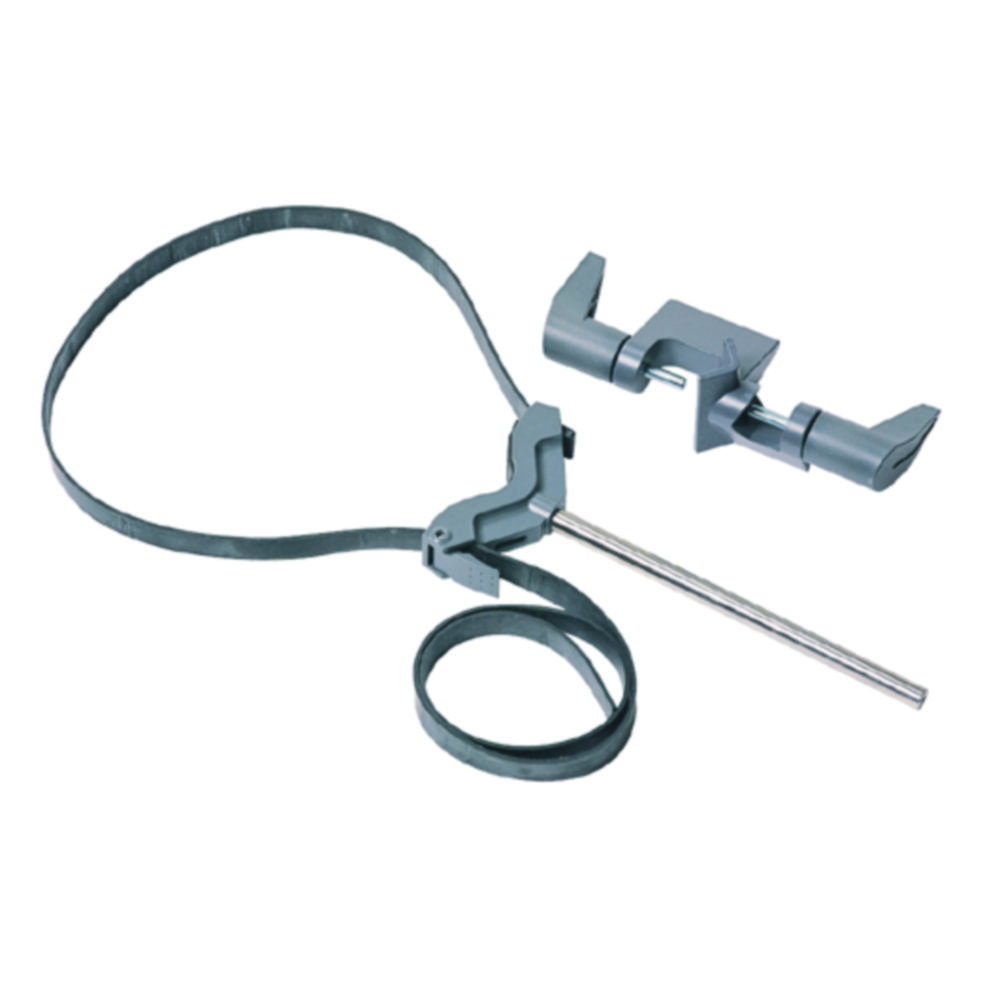

Strap clamps RH 5 for overhead stirrers an Disperser T 50 digital ULTRA-TURRAX®
€0.00*
With R 270 bosshead. For vessel Ø 40 to 300 mm.
Bosshead R 270 for overhead stirrers
€0.00*
Claming range stand 25 to 36 mmClaming range extension arm 5 to 21 mm
