Temperature and humidity logger LOG210 TC
Product information "Temperature and humidity logger LOG210 TC"
- Freely adjustable recording interval from 10 seconds to 24 hours
- Min- and Max-values can be reset in the display
- Time marking function ("Time Marker") during data recording
- With movement sensor for shock recording
- Memory for approx. 60000 measurements
- Automatic output as PDF file, device can also be used without software
- No driver installation needed
- Status and alarm LEDs, with buzzer
- Display can be switched off
- Battery life > 4 years at > 15 min measuring interval (free of charge)
- USB interface for data transfer
- Software available for download on the manufacturer's website
Temperature and humidity sensors are available separately.

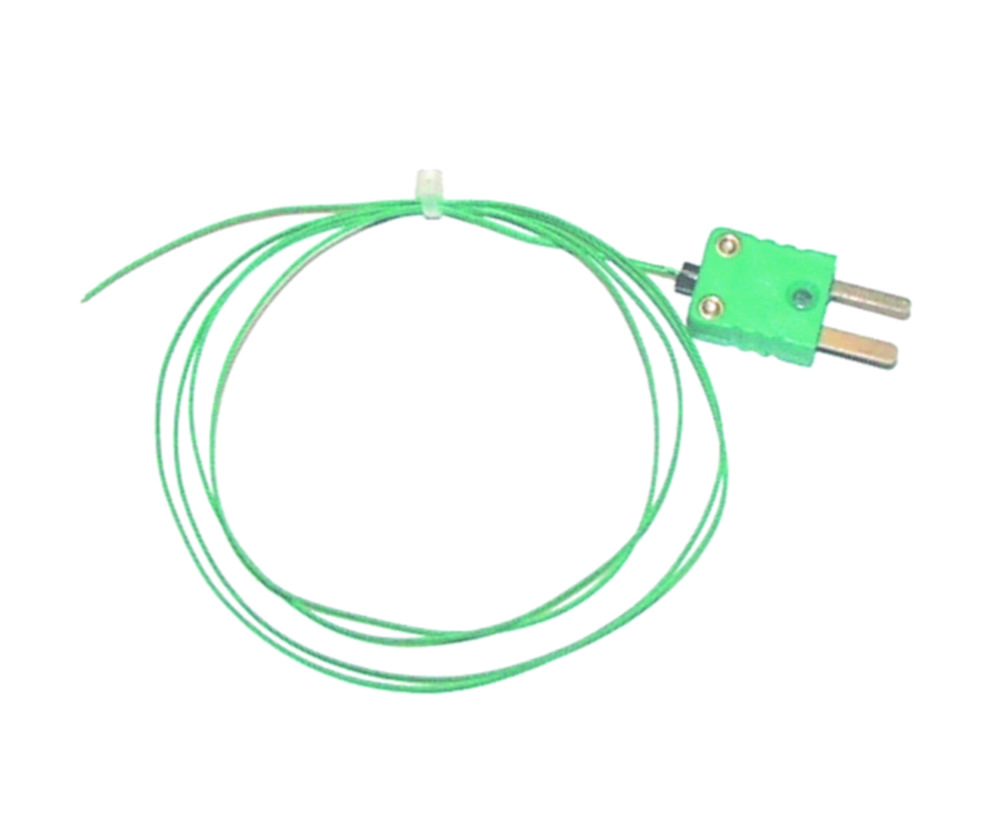

Scope of supply: Data logger, 2 thermocouples type K (1 m length), wall mount, battery, USB cover, screws and dowels
| Specifications | |
| Temperature range internal: Temperature accuracy internal: | -40 ... 70 °C ±0.5 °C (0 ... 60 °C), otherwise ±1 °C |
| Temperature range external: Temperature accuracy external: | -150 ... 1370 °C ±0.5 °C or 0.5 % (the greater value applies) |
| Temperature resolution: | 0,1 °C |
| Humidity range: Humidity accuracy: | 0 ... 100 % r.H. ±3 % r.H. (40 ... 60 % r.H.), ±3,5 % r.H., (20 ... 40 and 60 ... 80 % r.H.), otherwise ±5 % r.H. |
| Humidity resolution: | 0.1 % r.H. |
| Housing: | ABS |
| Dimensions (W x D x H): | 42 x 20 x 91.5 mm |
| Weight: | 70 g |
| Power supply: | 1/2 AA 3.6 V |
| Accuracy humidity ± % r.F.: | 3 |
|---|---|
| Accuracy temperature ± °C: | 0.1 |
| Depth mm: | 20 |
| Height mm: | 91.5 |
| Manufacturer Article Number: | 5005-0214 |
| Measuring range end humidity % r.F.: | 100 |
| Measuring range temperature °C: | 70 |
| Range start temperature °C: | -40 |
| Resolution humidity % r.F.: | 0.1 |
| Resolution temperature °C: | 0.1 |
| Storage readings: | 60000 |
| Type: | LOG210 TC |
| Type of auxiliary energy: | 1/2 AA 3,6 V |
| Weight kg: | 0.07 |
| Width mm: | 42 |
Accessories
